Hikvision KD8 Series Pro Modular Door Station – Advanced Access & Intercom Entry Solution in Kenya
Hikvision KD8 Series Pro Modular Door Station line, available at Hikvision Shop in Kenya, offers powerful flexibility for customising entry‑point systems. Whether you choose the camera main unit (for visual intercom), keypad module (for PIN code access) or display module (for visitor browsing and contact lists), the KD8 modular platform allows you to build a door‑station tailored to your property’s requirements.
One core example: the main unit features a 2 MP fisheye HD camera with a wide field of view, PoE or 12 V DC supply, and two lock‑control relays for direct gate/door connectivity. The keypad module supports PIN‑code entry and calls to indoor stations. The display module supports up to 2,000 contacts, multilingual interface and PIN or visitor browsing. All modules support IP65 outdoor protection and are built for the Kenyan environment — dust, sun and heavy weather alike.
This system is ideal for villas, apartments, gated communities or commercial buildings where the entry station needs to be modular, upgradeable and professional. By installing one of the KD8 main modules along with chosen sub‑modules (keypad, display, card reader) you can scale from single‑door to multi‑tenant solutions without replacing the whole unit.
Key Features:
• Modular platform: choose main camera, keypad, display or card‑reader sub‑modules
• 2 MP HD camera module supports wide‑angle video and IR illumination

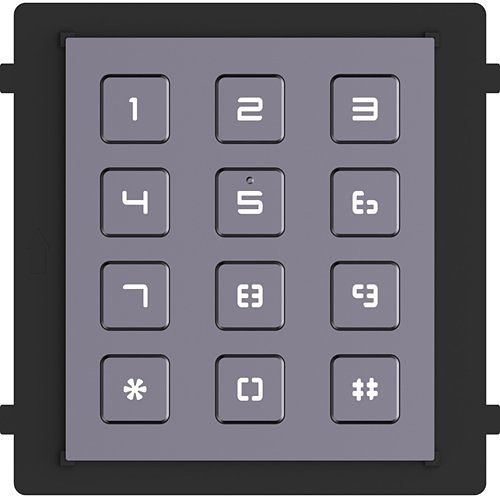

• Keypad module supports PIN code entry, backlit buttons, IP65/IK07 rating
• Display module with 3.5″ screen, supports up to 2,000 contacts and multilingual UI
• PoE (IEEE 802.3af) or 12 V DC power for flexible installation
• Outdoor durable housing rated IP65 (weather‑proof) and IK08/IK07 (impact)
• Two lock‑control relays (on camera main unit) for direct lock/gate integration
• Supports RS‑485 based sub‑module communication and expansion
• Suitable for villas, smart homes, apartments, offices in Kenya
• Upgradeable as your access control needs grow
Specifications:
| Specification | Details |
| System Family | KD8 Series Pro Modular Door Station |
| Typical Model Prefixes | DS‑KD‑8003‑IME1 (camera), DS‑KD‑KP (keypad), DS‑KD‑DIS (display) |
| Camera (on main unit) | 2 MP HD, fisheye; horizontal ~146°, vertical ~82° |
| Power Supply | PoE (IEEE 802.3af) or 12 V DC |
| Lock Relays | 2 outputs (max 30 V DC / 2 A) |
| Sub‑module Interface | RS‑485 IN/OUT |
| Protection Rating | Outdoor units: IP65; keypad: IP65/IK07 |
| Operating Temperature | –40 °C to +55 °C |
| Dimensions | Approx. 98.5 × 100 × 34 mm |
| Expandability | Supports multiple sub‑modules (keypad, display, card reader) |
Whether you’re creating a high‑end villa entry point, a multi‑tenant apartment entrance or an office access station, the Hikvision KD8 Series Pro Modular Door Station offers professional‑grade functionality, scalable architecture and robust build quality. Explore the full modular options at Hikvision Shop in Kenya for tailored access control solutions.
